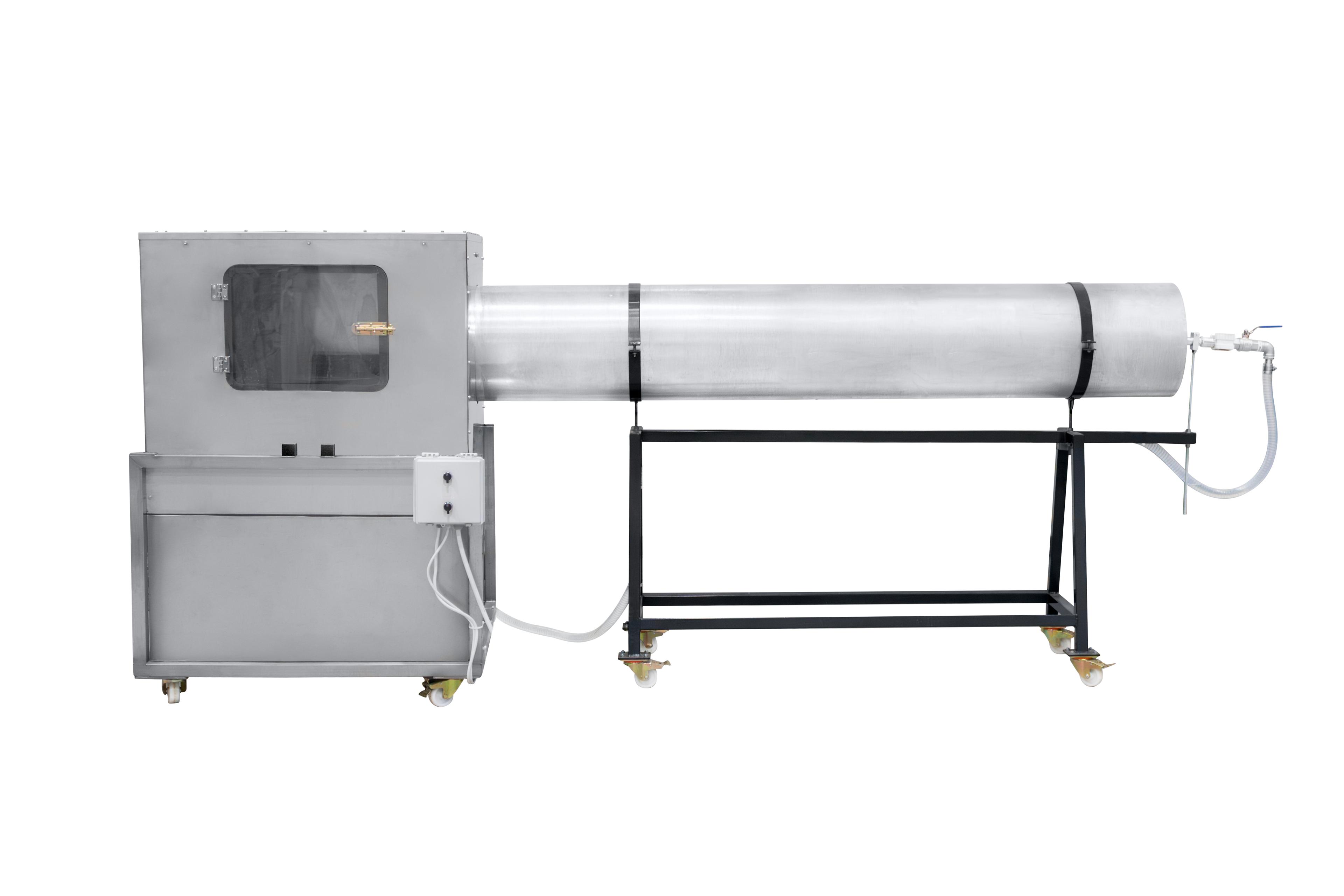

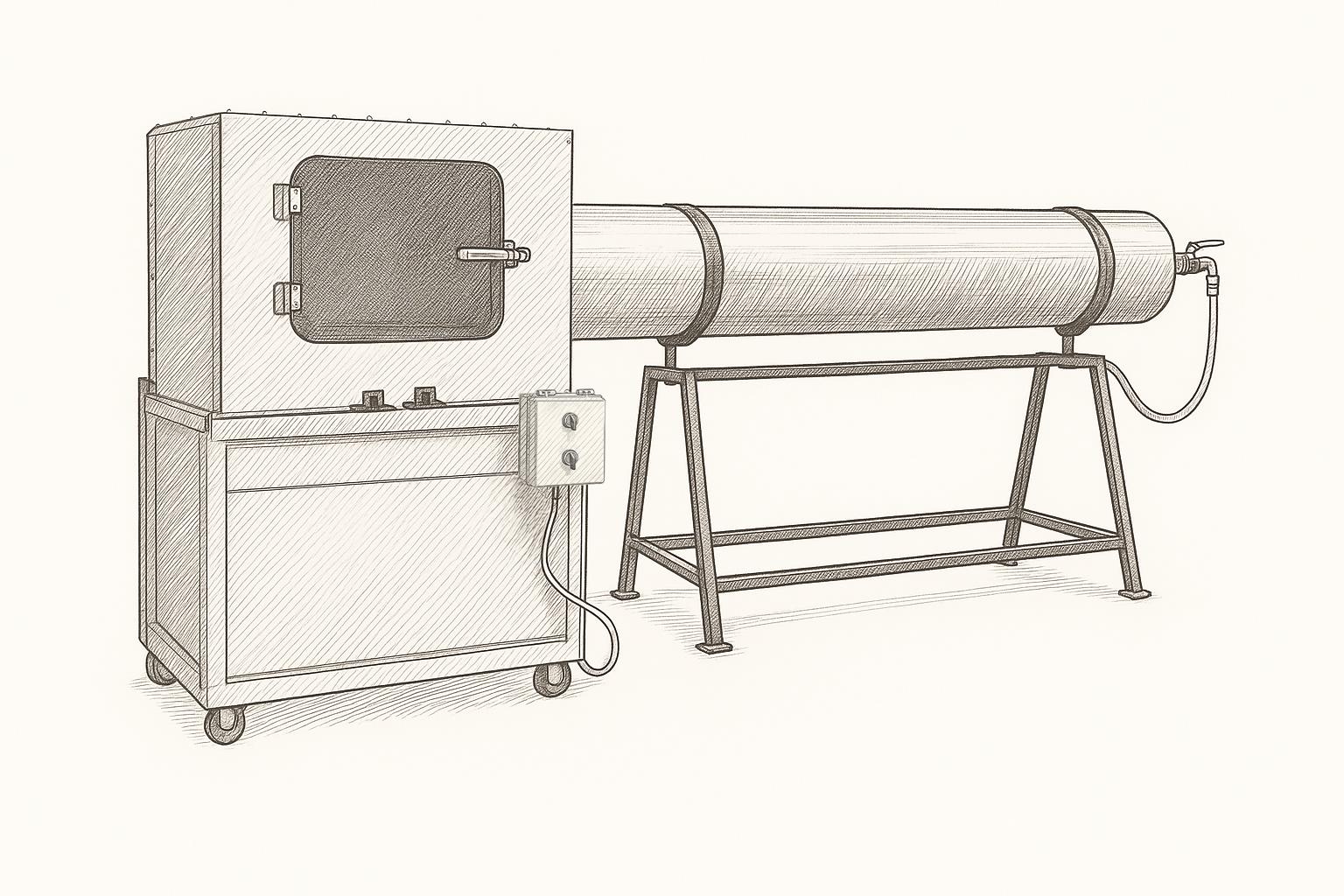

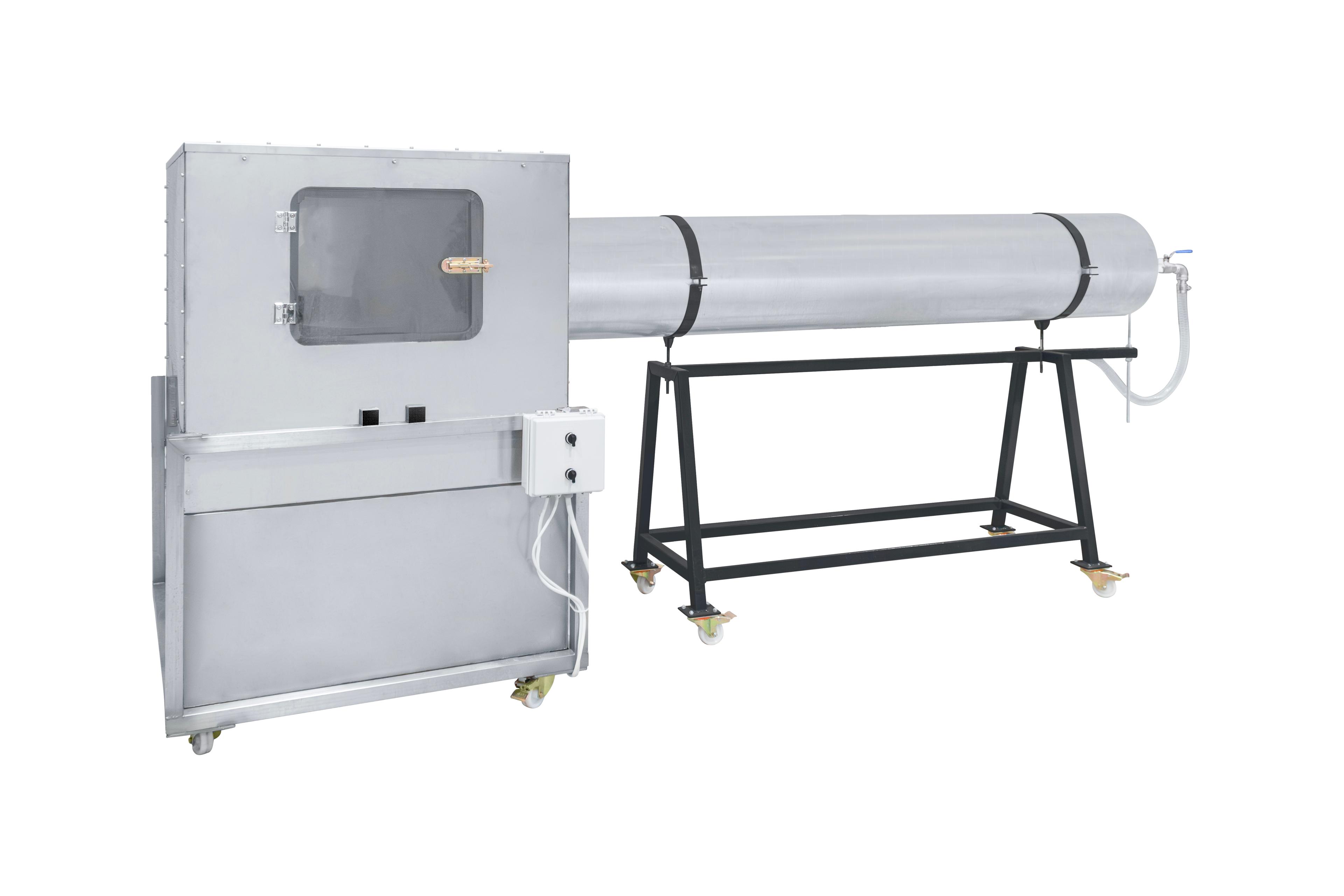

A stainless-steel, leakproof test solution designed in compliance with IP waterproofing standards, featuring adjustable flow rates and an integrated rotary table.
Chamber: 995 × 995 × 1495 mm,Distance Tube: 404×2500×1340 mm,Rotary table: 24 rpm (0.18 kW),Pump power: 1.1 kW / 0–120 L/min,IPX5: 12.5 L/min water flow,IPX6: 100 L/min water flow,Stainless-steel, fully sealed construction,Manual height adjustment and flow control

The IPX5 and IPX6 tests are performed to determine the waterproofing level of a product.
Products must be tested according to the requirements of the relevant IPX5 and IPX6 test levels.

The test sample is placed inside a chamber equipped with a rotary table.
During testing, the water spray angle is set to 360°, and the exposure time is 3 minutes.


General IPX Test Conditions

  • Water supply: Flow rate set to 100% during testing

  • Nozzle diameter: 6.3 mm (IPX5) / 12.5 mm (IPX6)

  • Pressure: 30 kPa (IPX5) / 100 ± 5 kPa (IPX6)

  • Distance: Nozzle positioned 2.5 – 3 m from the test sample


IPX5 Test Conditions

  • Water supply: Flow rate at 100%

  • Flow rate: 12.5 L/min ± 5%

  • Pressure: 30 kPa

  • Duration: 1 minute exposure while maintaining flow and pressure within IPX5 conditions

  • Distance: 2.5 – 3 m from the nozzle to the test sample


IPX6 Test Conditions

  • Water supply: Flow rate at 100%

  • Flow rate: 100 L/min ± 5%

  • Pressure: 100 ± 5 kPa

  • Duration: 1 minute exposure while maintaining flow and pressure within IPX6 conditions

  • Distance: 2.5 – 3 m from the nozzle to the test sample


Evaluation Criteria

  • IPX5 and IPX6 test levels must be maintained throughout the test

  • The product must show no water ingress

  • If water penetration is suspected, the test must be repeated


Technical Specifications

  • Chamber dimensions: 1000 × 1000 × 1500 mm (W × D × H)

  • Spray pipe dimensions: 580 × 2500 × 1340 mm (W × D × H)

  • Gear motor power: 400 V / 0.18 kW / 24 rpm

  • Pump power: 220 V / 1.1 kW / 0–120 L/min

  • Electrical connection: 380 V / 1.3 kW
