Reliable IP Test Machine by BallastCo, Made in Türkiye

When using a product outdoors, the first concern of customers is its resistance to severe environmental conditions, especially exposure to water. To reassure customers, manufacturers rely on IP Test machines.


As a trustable Turkish manufacturer, BallastCo, part of ArGesim Group, delivers precision-engineered IPX5/IPX6 testers that help companies worldwide comply with international standards and boost product durability.


What Do IP Ratings Mean?


The Ingress Protection (IP) code is an international standard (IEC 60529) that classifies how well a product resist against dust and water.


  • First digit (0–6): Refers to protection against solid objects and dust.
  • Second digit (0–9K): Refers to protection against water ingress.


Here is a table including some examples of IP Class:


IP Class

Specifications

IPX5

Resistance to low-pressure water jets (12,5 L/min)

IPX6

Resistance to high-pressure water jets (100 L/min)

IP67

Protection against dust and temporary immersion in water

IP68

Protection against dust and long-term immersion under defined conditions



BallastCo’s machines are mainly used for IPX5 and IPX6 tests, which are the most widely used water-jet tests: These tests are made to prove that the tested products perform under rain, splashes, and cleaning processes.


How Does BallastCo’s IP Test Machine Work?


BallastCo’s IPX5/IPX6 tester is designed for accuracy, safety, and repeatability.

1. Setup:

  • The product is mounted securely on a rotating turntable inside a stainless-steel cabin.
  • The turntable spins at 24 rpm, exposing every surface.

2. Water Jet Simulation:

  • The operator installs either the IPX5 nozzle (Ø6,5 mm, 12.5 L/min) or IPX6 nozzle (Ø12.5 mm, 100 L/min).
  • A powerful 220V pump circulates fresh water at the required flow rate.

3. Precision Control:

  • Flow rate is monitored with a flow meter and fine-tuned via a manual valve.
  • The distance pipe (2.5 m) ensures correct jet distance (2,5 m – 3 m).

4. Safety & Observation:

  • Operators can watch safely through the plexiglass cabin cover.
  • All parts are stainless, corrosion-resistant, and leak-proof.

5. Completion:

  • After the 3-minute test, the machine stops automatically.
  • The product is inspected for any water ingress or malfunction.

The result is a clear, standards-based validation of product reliability.


BallastCo IPX5/IPX6 Test Machine – Technical Specifications


Technical Table

Feature

Specification

Cabin Dimensions

995 × 995 × 1495 mm (W × L × H)

Distance Pipe

404 × 2500 × 1340 mm (W × L × H)

Turntable Speed

24 rpm (400V reducer, 0.18 kW)

Pump Power

220V / 1.1 kW, adjustable 0–120 L/min

Electrical Connection

380V / 1.3 kW total

Water Flow Rate

12.5 L/min (IPX5) / 100 L/min (IPX6)

Nozzle Dimensions

Ø30 – Ø6.5 (IPX5) / Ø30 – Ø12.5 (IPX6), 80 mm length

Test Duration

Standard 3 minutes

Distance to Product

2.5 m – 3 m (adjustable)

Cabin Material

Stainless steel, corrosion-resistant, leak-proof

Extra Features

Plexiglass observation cover, interior lighting, manual flow adjustment, high safety, low energy use

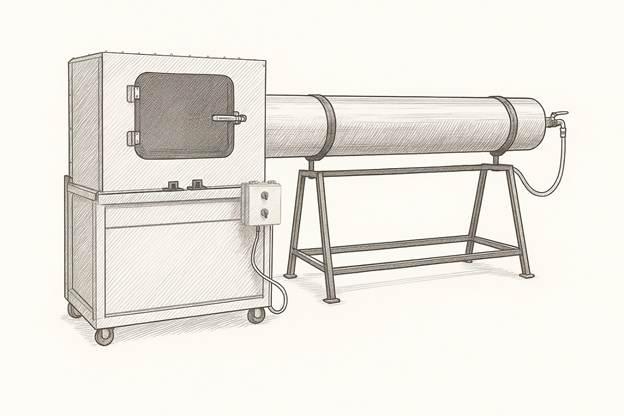

Elements of BallastCo IP Test Machine:


Why Choose BallastCo?


Unlike generic testers, BallastCo’s IP machines stand out for:


  • Engineering precision: customizable cabins and nozzle systems
  • Ease of use: intuitive control panels and ergonomic design
  • Durability: stainless-steel construction with long service life
  • Energy efficiency: high performance with low consumption
  • Trusted support: dedicated multi-lingual after-sales team for live support.

By using BallastCo equipment, manufacturers reduce warranty claims, strengthen compliance, and gain a competitive advantage in global markets.


Frequently Asked Questions (FAQ) about IP Test Machines


Q1: What makes IPX6 testing harder than IPX5?

IPX6 uses water jets at eight times the flow of IPX5, simulating harsher exposure such as pressure washing or storms.

Q2: Where is the BallastCo IP Test machine manufactured?

All machines are proudly manufactured in Türkiye, at BallastCo’s dedicated production facilities.

Q3: What is the warranty?

BallastCo offers a 1-year warranty against manufacturer defects.

Q4: What is the delivery time?

Standard delivery is 4 weeks from order confirmation.

Q5: Can BallastCo customize machines for different product sizes?

Yes. Test cabins, nozzle setups, and flow controls can be adapted to customer requirements.
